Day: July 18, 2026

Jam Table – the not-great Electric Bass experiment

So, I decided after the Tube Bass failure to try something more orthodox: an electric slide bass.

Jack White’s demo in “It Might Get Loud” – slapping together an electric slide guitar and wailing on it within about 10 minutes – made it look almost simple.

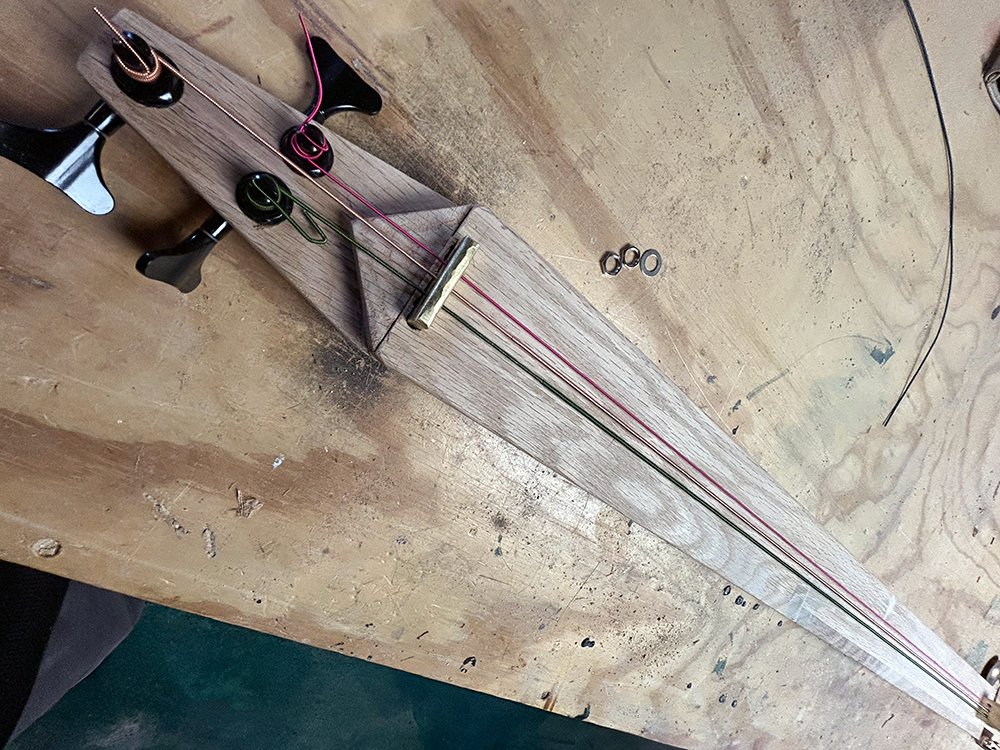

I used a slab of salvaged oak for the body, edge-cutting a wedge-shaped peghead into it with the radial arm saw (the most versatile and dangerous tool in the shop). Non-trivial but – mercifully – non-fatal.

Drilling the holes for the machines was even dicier: the damn barrels come in a just-a-bit-thicker size than my largest nice 3/8″ bit, so I had to bore them out to make them fit.

I settled on a 3-string layout, figuring that the open G-D-G tuning I once built on a cigar-box guitar kit might be fun to slide bass notes on.

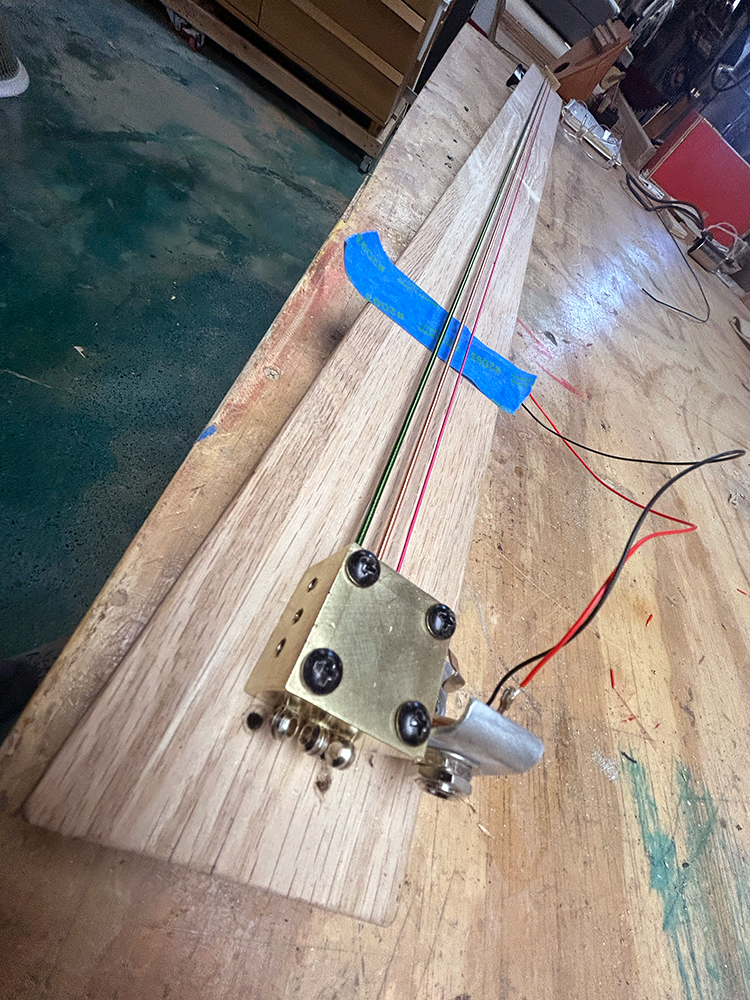

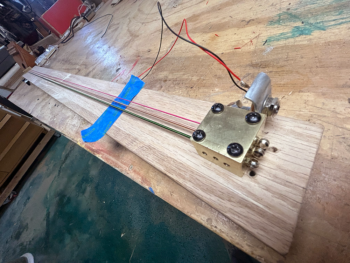

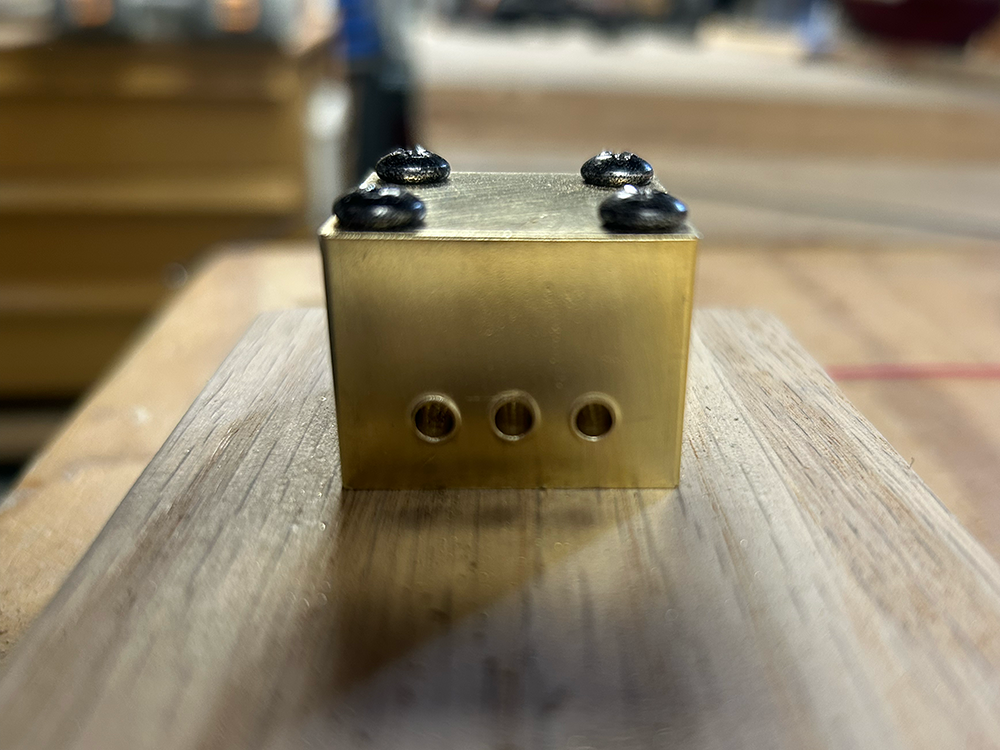

I fashioned the nut and bridge from blocks of brass from the scrap bin at my beloved Industrial Metal Supply (one of the few stores I really miss most from our life in LA a million years ago), and embedded them into the oak.

I then strung it up and tested with a piezo pickup taped to the body.

Open, the strings sounded great. But using the slide told me I had made a crappy choice: unfretted, the wooden neck fully deadened the string beneath the slide.

Sooo, I ordered a fret template and some fret wire, and soon set about building V.2.

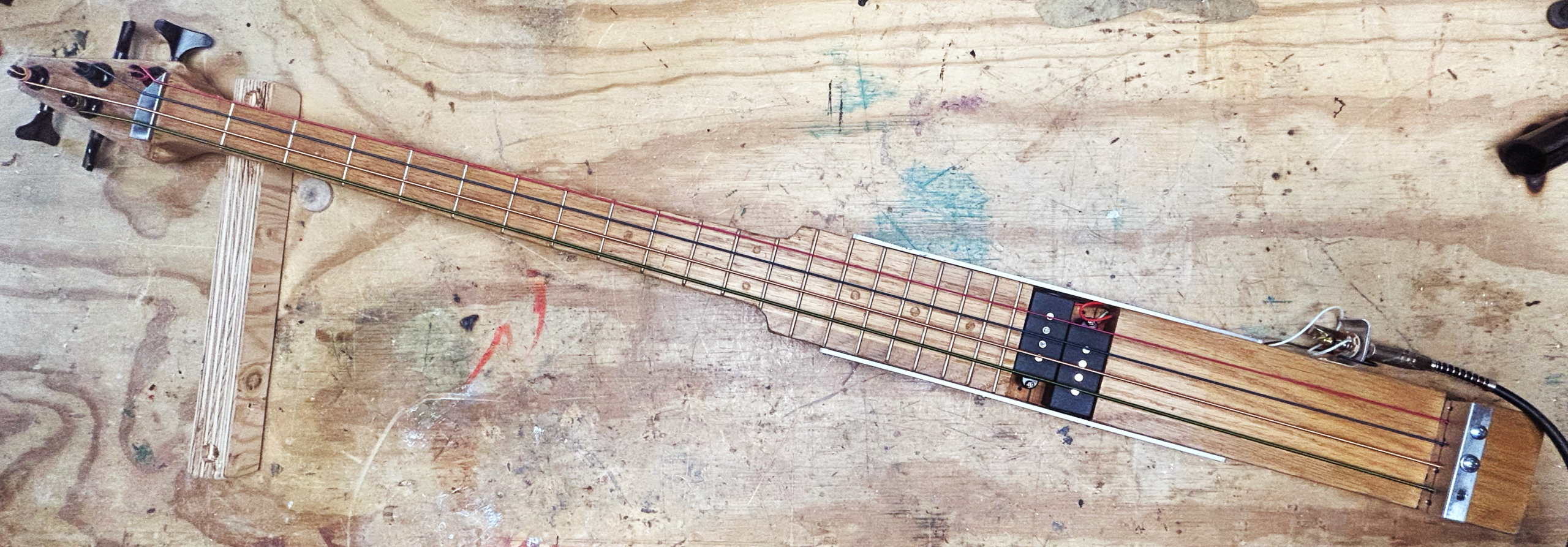

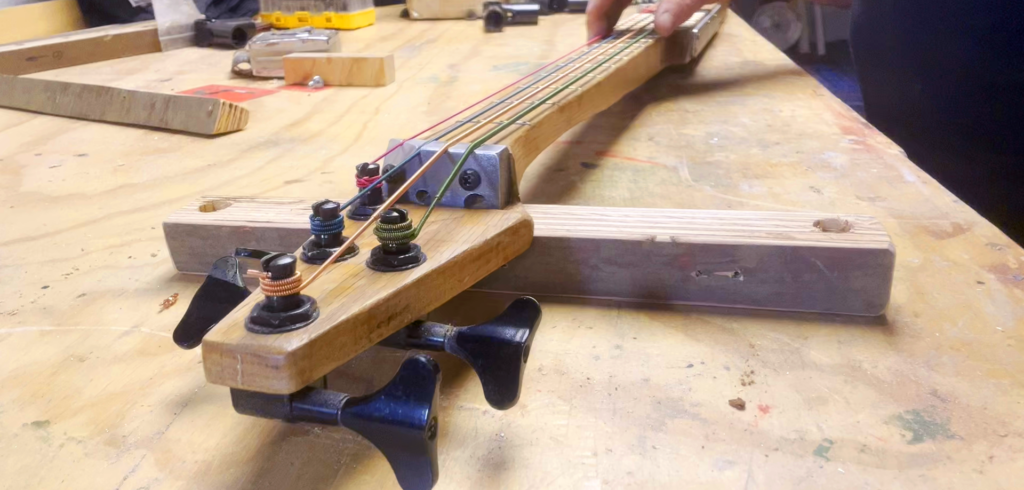

This time, I cut the oak slab and shaped it more like a traditional bass neck – with the nut and bridge correctly spaced. I cut and inserted the fret wires according to the template.

Then I installed a set of bass-guitar pickups into the body, a jack on the bottom of the rail, and plugged the sucker in.

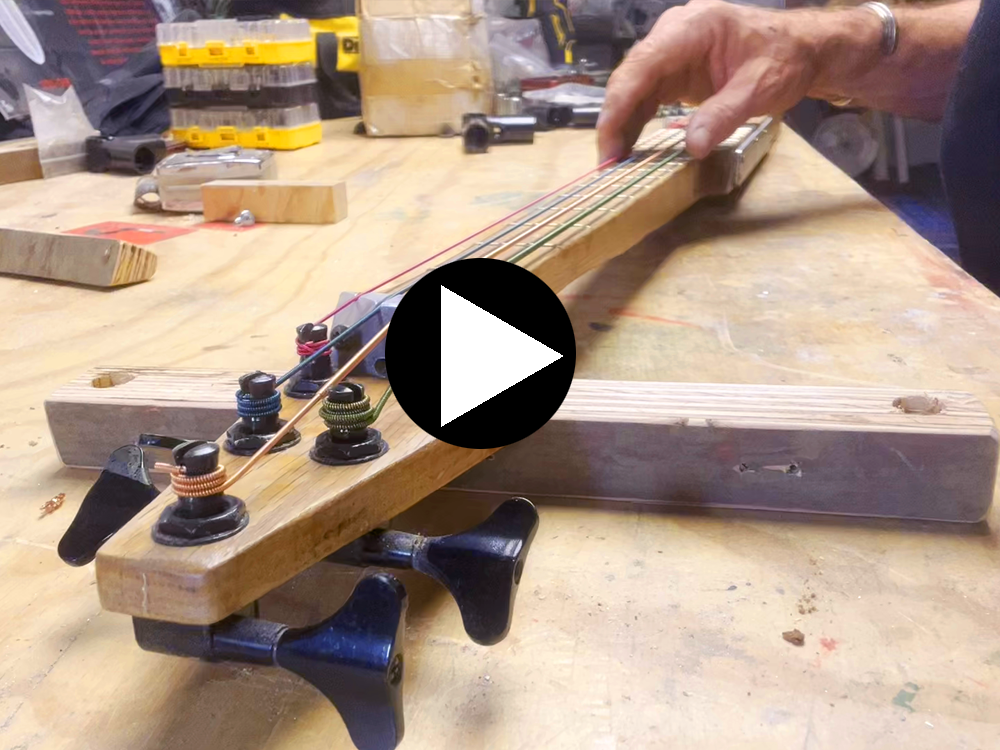

Note-wise, it sounds correctly tuned. But sliding requires a pro bass player’s finesse (which I lack), and I don’t want to daunt any casual musician who might walk up to the table to have some fun trying it out.

Plus, I cut the A groove too wide in the nut, which makes that string buzz like a sitar. It sounds much more annoying than cool, otherwise I’d just go ahead and just mis-cut the other grooves the same way.

What’s more, playing lap-slide bass might be just too weird for all but the most-dedicated bassist. (or would it?)

Anyway, in the end, I want the table to be fully acoustic with the option later to install piezos for each instrument so the whole table can be plugged into a mixer or recorder.

So, what’s left to try?

Well, f*ck it. I guess I have to figure out how to install a standup bass directly into the table.





Jam Table – the failed Tube Bass experiment

The table needs a bass. I have no idea how build that for a melodic bottom end; something anyone can plan, something that can survive Seattle weather like the other instruments can.

I knew exactly how to the xylophones and propane tank drum for the Jam Table because I had built them before. And I knew I could throw together some array of percussion instruments that might delight someone with a pair of sticks.

This was terra incognita.

I settled on trying to create a slide bass, using rubber ukulele-bass strings. The trick was A) getting a slide to work and B) making it loud enough.

I hacked together a tubular frame of 3.5-inch irrigation pipe, built a peg head from scrap oak (from our recent remodel), and a tailpiece out of a strip of scrap steel to anchor the bottom end of the strings.

The slide was a challenge – I used the steel roller from a cheese slicer, suspended under the strings that the musician would slide along a repurposed chunk of sliding-door track to raise or lower the notes. Sort of a redneck slide guitar affair..

I blew a good 10 days trying to figure it all out, but it worked.

And it sounded like absolute shit. Just awful.

It sounded even worse when I added a piezo pickup and ran it through an amplifier. No volume, but you could hear the slide VERY CLEARLY.

And besides, it would require amplification, which meant either installing a cheap amp and surrendering it to the elements or requiring musicians to bring their own amps.

Bah. Back to the drawing board.
